| Nguồn gốc: | Trung Quốc |
|---|---|
| Hàng hiệu: | Coarrech |
| Chứng nhận: | ISO9001、CE |
| Số mô hình: | CT-ZT-3 |
| Số lượng đặt hàng tối thiểu: | 1 cái |
| Giá bán: | 1000-100000 USD |
| chi tiết đóng gói: | Với phim thường xuyên và thùng carton |
| Thời gian giao hàng: | 20 ngày sau khi gửi tiền |
| Điều khoản thanh toán: | T/T |
| Khả năng cung cấp: | 20set/tháng |
| Ứng dụng: | sản phẩm kim loại | Phương pháp kiểm soát: | Màn hình LC + Touch |
|---|---|---|---|
| loại máy: | BOOTS XUÂN, HỆ THỐNG Băng tải, Curing lò nướng | Dịch vụ sau bán hàng: | Hỗ trợ trực tuyến/ cài đặt, vận hành và đào tạo trực tuyến |
| Kiểu: | Dòng sơn sơn tự động | Quá trình sơn phun: | Vẽ phun tự động |
| Thích hợp cho: | Ô tô, Thành phần sản phẩm, Mũ bảo hiểm và các mặt hàng tương tự | ||
| Làm nổi bật: | ISO-Class certified cleanroom coating facility,aerospace cleanroom coating for critical components,aviation component smart painting line |
||

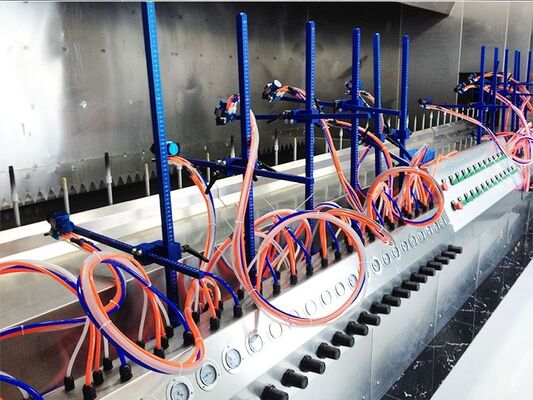

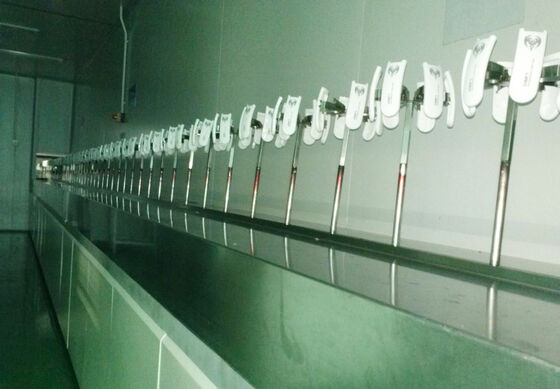

ISO-Class Certified Controlled Environment Cleanroom Coating Facility for Critical Aerospace & Aviation Components
Overview:
The CT-AeroGuard is engineered to meet the stringent, critical requirements of the aerospace and aviation sectors. This facility operates as a strict ISO-certified cleanroom environment, maintaining precise control over temperature, humidity, and airborne particulate matter to microscopic levels. It is the ultimate solution for the precision application of specialized coatings onto turbine blades, fuselage composite components, and sensitive avionics housings where failure is not an option.
Technical Specifications:
| Feature | Specification |
| Cleanliness Class | ISO Class 7 / Class 8 (Fed Std 209E) |
| Temp Control | Precision HVAC (±1°C tolerance) |
| Humidity Control | Desiccant Dehumidification (±3% RH) |
| Wall System | Anti-static, Flush-mount Cleanroom Panels |
| Air Exchange | 60 - 100 changes per hour |
| Compliance | AS9100 / NADCAP ready |
| Stage | Function | Key Technologies |
|---|---|---|
| 1. Loading & Pre-treatment | Automated part identification, dust/static removal | RFID tracking · Ionized air cleaning |
| 2. Pre-treatment | Degreasing/Phosphating/Rinsing/Drying (enhance adhesion) | Closed-loop chemical control · Tunnel spray/immersion |
| 3. Automated Spraying | Robotic precision coating (primer/color/clear) | 6-axis robots · Electrostatic rotary bell (30%+ paint savings) · Smart color change (≤10 sec) |
| 4. Flash-off | Solvent evaporation (prevent blistering) | ±1°C temp/humidity control |
| 5. Curing | High-temperature film curing (80-180°C) | Multi-zone IR/convection ovens · Waste heat recovery (20%+ energy saving) |
| 6. Cooling & QC | Forced cooling · AI defect inspection | Machine vision (runs/sags/color deviation) · Laser thickness gauge |
III. Smart Core Technology
Dynamic parameter optimization: Real-time adjustment of spray pressure/flow (responsive to ambient temp/humidity)
IV. Key Performance Advantages
| Indicator | Traditional Line | Automated Line |
|---|---|---|
| Coating Uniformity | >15% human error | <3% robotic accuracy |
| VOC Emissions | Non-compliant | 99% RTO purification |
| Total Cost | 40%+ labor cost | 3-year ROI (paint/labor savings) |
| Daily Output | Limited by shifts | 24/7 continuous production |
V. Industry Applications
Heavy Machinery: Anti-corrosion coating for excavators/cranes (1000h+ salt spray test)
Consumer Electronics: UV coating for smartphone casings (cleanroom-grade)
Furniture: Distressed wood effects (multi-texture program library)
VI. Implementation Requirements
Space: Linear layout ≥80m (or U-shaped compact design)
Energy: ≥500kW power + natural gas supply (curing ovens)
Maintenance: IoT remote diagnostics + robotic arm calibration
VII. Industry Trends
Greener Processes: Waterborne/powder coating retrofits
Modular Design: Scalable line segments for capacity needs
Terminology Alignment
Flash-off (SAE J1545 standard)
Phosphating (ASTM B201 process)
Electrostatic Rotary Bell (Gema equipment terminology)
Technical Conventions
Temperature ranges use 80-180°C (not "℃")
Measurements: ±1°C (not "±1℃")
Regulatory Compliance
VOC treatment: RTO (Regenerative Thermal Oxidizer) - EPA Method 25A
Salt spray test: 1000h+ per ASTM B117
Industry-Specific Phrasing
Distressed Effects (furniture industry term)
Cleanroom-grade (SEMI F1 standard)
