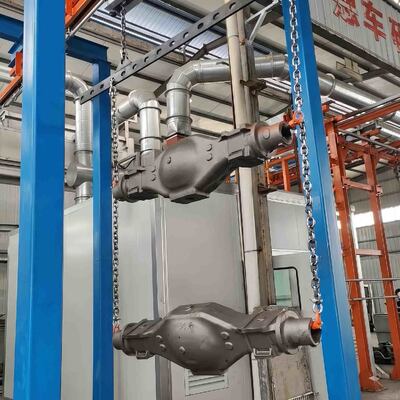

1.Heavy-Duty Overhead Conveyor Coating Line For Automotive Axles & Heavy Machinery
Brand: CoatTech
MOQ: 1 Set
Price: USD 5,000 - USD 15,000 / SET (Customizable based on layout)
2.Product Overview:
Engineered for the rigorous demands of industrial manufacturing, the CoatTech Heavy-Duty Overhead Conveyor System is the ultimate solution for transporting dense,
heavy components such as automotive differential and axle housings.
This continuous chain conveyor ensures smooth and stable movement through pretreatment, spraying, and curing zones. By minimizing sway and offering precise positioning,
this system is designed to engineer out your production bottlenecks, maximize floor space, and drastically improve workflow efficiency for high-volume factory production.
3.Technical Sheet
| Parameter | Specification |
| System Type | Continuous Overhead Chain Conveyor |
| Track Profile | High-Carbon Steel Enclosed Track / I-Beam |
| Load Capacity per Hanger | Up to 1,000 kg (Customizable based on component weight) |
| Chain Pitch | 150mm / 200mm / 250mm (Heavy-Duty Drop Forged) |
| Operating Speed | 0.5 - 5.0 m/min (Variable Frequency Drive Adjustable) |
| Drive Unit | Drive with Overload Protection |
| Tension Device | Counterweight or Pneumatic Tensioner |
| Lubrication System | Automatic Micro-Mist Lubricator |
| Temperature Resistance | Up to 250°C (Suitable for curing ovens) |
| Primary Application | Cast iron parts, automotive axles, heavy machinery |
Contact us today to integrate this conveyor into your existing setup.
