| MOQ: | 1 |
| giá bán: | USD6000-USD12000/SET |
| Bao bì tiêu chuẩn: | Với phim thường xuyên và thùng carton |
| Thời gian giao hàng: | 15 ngày sau khi gửi tiền |
| Phương thức thanh toán: | T/T |
| năng lực cung cấp: | 30 bộ/tháng |
Engineered for space-constrained factories (5.60m & 6.20m width options). CoatTech provides CNAS-certified 60-minute fire-rated rock wool panel systems with 12–15 days of on-site installation and commissioning support.
come client also called it as custom industrial coating system, 60 minute fire rated panel, rock wool sandwich panel, compact spray booth layout, on-site commissioning service
When integrating new coating lines or partitioning industrial spray rooms, manufacturers often face two critical roadblocks:
narrow factory footprints and strict local fire safety regulations.
CoatTech's custom modular rock wool partition system is specifically engineered to solve both problems simultaneously. By combining millimeter-precise spatial layouts with certified 60-minute fire resistance, we ensure your equipment fits perfectly, passes local safety audits seamlessly, and operates reliably.
1.60-Minute Fire Resistance Rating: Officially tested and certified under GB/T 9978 standards (CNAS / CMA / ILAC-MRA recognized).
2.Tailored Spatial Layouts: Pre-engineered options designed specifically for site widths capped at 5.60m (Option 1) or 6.20m (Option 2).
3.High-Density Insulation: Built with 50mm double-sided color steel panels filled with a 100 kg/m³ non-combustible rock wool core.
4.Turnkey On-Site Deployment: 1 experienced field engineer dispatched to your facility for 12–15 days of structural assembly, integration, and commissioning.
Standard equipment layouts often fail when space is strictly limited.

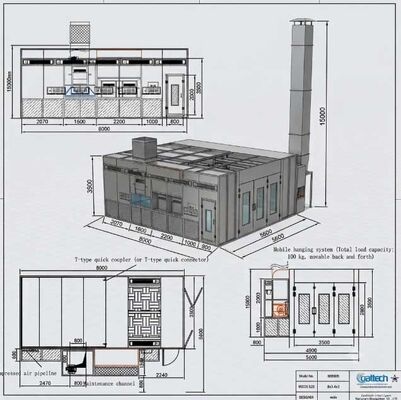

CoatTech provides two optimized structural configurations based on your exact plant boundary constraints:
1.Focus: Maximum space efficiency in tight operational corridors.
2.Design: Ultra-compact footprint that integrates panel walls and ductwork without compromising internal working space or safety clearance.
| Item / System Parameter | Detailed Technical Specifications & Configuration Requirements | Remarks / Compliance |
| 1.0 MAIN DIMENSIONS & SITE ADAPTATION | ||
| Inside Working Size | 8000 × 3400 × 3000 mm (L × W × H) | Workpiece chamber |
| Outside Overall Size | 8110 × 5600 × 3500 mm (L × W × H) (Includes 800mm maintenance aisle) | Fits 5.6m site boundary |
| Foundation & Floor | Completely flush with existing hangar floor. Strictly NO pits, NO ramps required. | 100% Flush Floor |
| Maintenance Passageway | Includes 800mm dedicated maintenance aisle for fan & duct servicing. | Integrated layout |
| 2.0 CABIN STRUCTURE & FIRE-RATED PANELS | ||
| Wall Panels | 50mm high-strength rockwool sandwich panels; Effective width 1150mm; Double-sided 0.6mm white color steel plates; Core density: 120 kg/m³; Fire Rating: Class A1. | Class A1 Fire-Rated |
| Roof Panels | 50mm high-strength rockwool sandwich panels; Effective width 1150mm; Double-sided 0.6mm white color steel plates; Core density: 120 kg/m³; Fire Rating: Class A1. | Class A1 Fire-Rated |
| Main Access Door | 3000 × 2800 mm (W × H); Quad-fold sheet metal bended door with square tube frame, PU insulation core, tempered glass observation windows, heavy-duty hinges. | Easy smooth operation |
| Personnel Door | 1 unit located at left-front side, Size: 800 × 2000 mm (W × H); Equipped with automatic pressure-relief safety lock and tempered glass window. | Emergency Exit |
| 3.0 VENTILATION & AIRFLOW SYSTEM | ||
| Airflow Capacity | 30,000 m³/h total airflow (Supply & Exhaust balanced). | High capacity |
| Side Exhaust Plenums | Side-wall mounted exhaust plenums (Height: 1000mm), constructed with 50x50mm square tubes, clad with rockwool panels and internal fiberglass filter. | Side-Downdraft design |
| Intake Fan Cabinet | 2 units YDW-5.0A external rotor double-inlet centrifugal fans; Motor power: 5.5 kW per unit (Total 11 kW); Equipped with Belimo electric modulating air damper. |
30,000 m³/h capacity |
| Air Velocity Calculation | Air Velocity = Total Airflow / 3600 / Cross-sectional Area = 30000 / 3600 / (8.0 × 3.4) = 0.306 m/s (No-load air velocity: 0.35 m/s). | Compliant airflow speed |
| Exhaust Fan Cabinet | 1 unit TAE-560H double-inlet centrifugal fan (belt driven); Motor power: 11 kW; Total airflow: 30,000 m³/h; Static pressure ≥ 700 Pa; Manual/electric damper. | High static pressure |
| 4.0 FILTRATION & ENVIRONMENTAL PROTECTION | ||
| 1st Stage Pre-filter | Intake pre-filter cotton, EN 779 Class G3 rating. | Dust pre-filtration |
| 2nd Stage Ceiling Filter | Full-depth 3D sticky sub-high efficiency filter, EN 779 Class F5 rating. | Fine particle capture |
| 3rd Stage Paint Arrestor | Fiberglass paint arrestor mats: 1st layer on side exhaust plenums, 2nd layer at exhaust cabinet bottom (Green inlet, white outlet, EN 779 Class G3). | Overspray filtration |
| 4th Stage VOC Adsorption | Granular activated carbon filter system for adsorption of organic solvents (benzene, xylene, VOCs). | Environmental compliance |
| 5.0 LIGHTING & ELECTRICAL CONTROL | ||
| Ceiling Lighting | 2 rows: 10 groups × 4 tubes = 40 pcs 22W T8 LED tubes. | IP65 Explosion-Proof |
| Side Lighting | 2 rows: 10 groups × 2 tubes = 20 pcs 8W T8 LED tubes. | IP65 Explosion-Proof |
| Illuminance Level | Illuminance ≥ 1000 LUX with dedicated explosion-proof light boxes. | High visibility |
| Control Cabinet | Standard relay and push-button control cabinet; Functions: Spraying control, lighting, fault alarm, main power, emergency stop, differential pressure gauge. | Explosion-proof wiring |
| 6.0 DUCTING, COMPRESSED AIR & AUXILIARIES | ||
| Exhaust Ducting | 12 sections of 800 × 800 × 1000 mm exhaust ducts, 1 × 90° elbow, 1 × 45° elbow. | Includes 15m chimney spec |
| Compressed Air Line | DN15 stainless steel compressed air pipeline; T-type quick couplers on both left and right sides; Front-end equipped with AIRTAC FRL 3-unit set (Oil-water separator + regulator). | AIRTAC FRL Included |
| Total Power | 24 kW (Fans 22 kW + Lighting ~2 kW). | 380V/50Hz/3Phase |
| Documentation & Service | Includes Operation Manual, Wiring Diagram, Certificate of Conformity, Packing List | Full support package |
1.Focus: Enhanced operator ergonomics and maintenance access.
2.Design: Utilizes additional lateral clearance to provide wider walk-through corridors, simplifying routine maintenance, filter replacement, and material handling.
| Item / System Parameter | Detailed Technical Specifications & Configuration Requirements | Remarks / Compliance |
| 1.0 MAIN DIMENSIONS & SITE ADAPTATION | ||
| Inside Working Size | 8000 × 4000 × 3000 mm (L × W × H) | Maximized inside width |
| Outside Overall Size | 8110 × 6200 × 3500 mm (L × W × H) (Includes 800mm maintenance aisle) | Exceeds 5.6m site width |
| Foundation & Floor | Completely flush with existing hangar floor. Strictly NO pits, NO ramps required. | 100% Flush Floor |
| Maintenance Passageway | Includes 800mm dedicated maintenance aisle for fan & duct servicing. | External layout |
| 2.0 CABIN STRUCTURE & FIRE-RATED PANELS | ||
| Wall Panels | 50mm high-strength rockwool sandwich panels; Effective width 1150mm; Double-sided 0.6mm white color steel plates; Core density: 120 kg/m³; Fire Rating: Class A1. | Class A1 Fire-Rated |
| Roof Panels | 50mm high-strength rockwool sandwich panels; Effective width 1150mm; Double-sided 0.6mm white color steel plates; Core density: 120 kg/m³; Fire Rating: Class A1. | Class A1 Fire-Rated |
| Main Access Door | 3000 × 2900 mm (W × H); Quad-fold sheet metal bended door with square tube frame, PU insulation core, tempered glass observation windows, heavy-duty hinges. | Higher clearance door |
| Personnel Door | 1 unit located at left-front side, Size: 800 × 2000 mm (W × H); Equipped with automatic pressure-relief safety lock and tempered glass window. | Emergency Exit |
| 3.0 VENTILATION & AIRFLOW SYSTEM | ||
| Airflow Capacity | 30,000 m³/h total airflow (Supply & Exhaust balanced). | High capacity |
| Side Exhaust Plenums | Side-wall mounted exhaust plenums (Height: 1000mm), constructed with 50x50mm square tubes, clad with rockwool panels and internal fiberglass filter. | Side-Downdraft design |
| Intake Fan Cabinet | 2 units YDW-5.0A external rotor double-inlet centrifugal fans; Motor power: 5.5 kW per unit (Total 11 kW); Equipped with Belimo electric modulating air damper. |
30,000 m³/h capacity |
| Air Velocity Calculation | Air Velocity = Total Airflow / 3600 / Cross-sectional Area = 30000 / 3600 / (8.0 × 4.0) = 0.260 m/s (Nominal velocity calculation: 0.347 m/s). | Compliant airflow speed |
| Exhaust Fan Cabinet | 1 unit TAE-560H double-inlet centrifugal fan (belt driven); Motor power: 11 kW; Total airflow: 30,000 m³/h; Static pressure ≥ 700 Pa; Manual/electric damper. | High static pressure |
| 4.0 FILTRATION & ENVIRONMENTAL PROTECTION | ||
| 1st Stage Pre-filter | Intake pre-filter cotton, EN 779 Class G3 rating. | Dust pre-filtration |
| 2nd Stage Ceiling Filter | Full-depth 3D sticky sub-high efficiency filter, EN 779 Class F5 rating. | Fine particle capture |
| 3rd Stage Paint Arrestor | Fiberglass paint arrestor mats: 1st layer on side exhaust plenums, 2nd layer at exhaust cabinet bottom (Green inlet, white outlet, EN 779 Class G3). | Overspray filtration |
| 4th Stage VOC Adsorption | Granular activated carbon filter system for adsorption of organic solvents (benzene, xylene, VOCs). | Environmental compliance |
| 5.0 LIGHTING & ELECTRICAL CONTROL | ||
| Ceiling Lighting | 2 rows: 10 groups × 4 tubes = 40 pcs 22W T8 LED tubes. | IP65 Explosion-Proof |
| Side Lighting | 2 rows: 10 groups × 4 tubes = 40 pcs 8W T8 LED tubes. | IP65 Explosion-Proof (Increased) |
| Illuminance Level | Illuminance ≥ 1000 LUX with dedicated explosion-proof light boxes. | High visibility |
| Control Cabinet | Standard relay and push-button control cabinet; Functions: Spraying control, lighting, fault alarm, main power, emergency stop, differential pressure gauge. | Explosion-proof wiring |
| 6.0 DUCTING, COMPRESSED AIR & AUXILIARIES | ||
| Exhaust Ducting | 12 sections of 800 × 800 × 1000 mm exhaust ducts, 1 × 90° elbow, 1 × 45° elbow. | Includes 15m chimney spec |
| Compressed Air Line | DN15 stainless steel compressed air pipeline; T-type quick couplers on both left and right sides; Front-end equipped with AIRTAC FRL 3-unit set (Oil-water separator + regulator). | AIRTAC FRL Included |
| Total Power | 24 kW (Fans 22 kW + Lighting ~2 kW). | 380V/50Hz/3Phase |
| Documentation & Service | Includes Operation Manual, Wiring Diagram, Certificate of Conformity, Packing List | Full support package |
Safety and regulatory compliance are non-negotiable. CoatTech panel systems undergo rigorous furnace testing by accredited national testing centers (SCFRI / NFTC).
1.Tested Integrity & Insulation: Maintained structural stability and thermal containment for over 60 minutes under intense fire exposure.
2.International Recognition: Our English inspection reports bear CNAS, CMA, and ILAC-MRA accreditation marks, making them directly acceptable for local fire department clearances across Europe, the Middle East, the Americas, and Asia-Pacific.
We don't just ship hardware—we guarantee operational readiness. Every system package includes comprehensive technical files and dedicated on-site assistance:
1.Complete Engineering Dossier: Immediate access to detailed 3D drawings, electrical schematics, itemized price breakdowns, and official inspection reports.
2.On-Site Installation Support: We dispatch 1 senior field engineer to your site for 12–15 days.
3.System Commissioning & Training: Our technician conducts complete alignment checks, airflow/heating tests, safety verifications, and hands-on training for your local operational team.
Q: Is a 50mm rock wool sandwich panel sufficient for 1-hour fire resistance?
A: Yes. CoatTech’s 50mm wall panel utilizes high-density (100 kg/m³) rock wool bound with high-temperature adhesive and silicate fiber seam sealing. It has been officially certified under GB/T 9978 standards to maintain structural integrity and thermal insulation for a full 60 minutes.
Q: How do I choose between Option 1 (5.60m) and Option 2 (6.20m)?
A: If your available clear site width is strictly limited to 5.60 meters or less, select Option 1. If your facility allows up to 6.20 meters of width, select Option 2 to take advantage of wider maintenance and operator access lanes.
Q: What is included in the 12–15 day on-site installation service?
A: CoatTech provides 1 dedicated technician on-site to guide structural panel assembly, seal verification, duct/component alignment, initial system power-up, operational testing, and safety training for your maintenance personnel.
Get the exact specifications, 3D drawings, and certified test reports for your engineering review.
Expert Engineering | Tailored Industrial Coating & Spray Booth
